What is the Split Tensile Strength of Concrete and Why We Measure it?


The split tensile strength of concrete is one of the basic and important properties which greatly affect the extent and size of cracking in structures. The concrete is not usually expected to resist the direct tension due to its low tensile strength and brittle nature.

However the determination of split tensile strength of concrete is necessary to determine the load at which the concrete members may crack. The test split tensile strength of concrete is very simple to perform and the most important fact is that it gives uniform results than the other tension tests like ring tension test and double punch test.

Split Tensile Strength of Concrete Definition, IS Code, Test Procedure, Formula

DETERMINATION OF SPLIT TENSILE STRENGTH OF CONCRETE AS PER IS: 5816: 1999 AND IS: 456: 2000


Hi friends, you are welcomed in the world of Civil Allied Gyan. Read definition, apparatus, IS code, detailed procedure, observations, formula, result, lab report about split tensile strength of concreteSave in pdf.

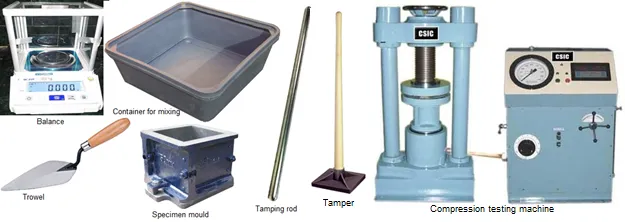

Apparatus Required for Split Tensile Strength of Concrete Test:-
  • Compression testing machine
  • Tamping rod
  • Weighing device
  • Tools and containers for mixing
  • Tamper


  • IS: 456: 2000, Code for method of practice for plain and reinforced concrete
  • IS: 5816: 1999, Method of test for split tensile strength of concrete


Advantage of Test for Split Tensile Strength of Concrete:-
  • Same type and same specimens can also be used for compression test.
  • The test split tensile strength of concrete is simple to perform and the most important fact is that it gives uniform results than the other tension tests like ring tension test and double punch test.

Split Tensile Strength of Concrete Definition, IS Code, Test Procedure, Formula


Preparation of Concrete Cube Specimens

Sampling of Materials – Samples of aggregates and cement for each batch of concrete will be of the desired grading and will be in an air-dried condition. On arrival at the laboratory, the cement samples will be thoroughly mixed dry either by hand or in a suitable mixer in such a manner as to ensure the greatest possible blending and uniformity in the material.

Proportioning – The proportions of the materials (aggregates, cement, water, etc.) will be similar in all respects to those to be employed in the work.

Weighing  The quantities of cement, each size of aggregate and the amount of water for each batch will be determined by weight to an accuracy of 0.1 % of the total weight of the batch.

Mixing Concrete – The cement and aggregates are mixed by hand or preferably in a laboratory batch mixer in such a manner as to avoid loss of water or other materials. It is done until the mixture ensures the greatest possible blending and of uniform color.
*Each batch of concrete will be of such a size as to leave about 10 percent excess after moulding the desired number of test specimens.

Mould – The cylindrical mould will be of 150 mm diameter and 300 mm height conforming to IS: 10086-1982.

Compacting – The test specimens will be made as soon as practicable after mixing.
  1. The moulds will be wiped clean and applied oil here.
  2. The obtained concrete will be filed in the moulds in layers approximately 5 cm thick.
  3. Each layer will be compacted with not less than 35 strokes per layer using a tamping rod (a steel bar of 16 mm diameter and 60 cm long, bullet pointed at lower end).
  4. The top surface will be leveled and smoothed with a trowel.

Curing – The test specimens will be stored in a place free from vibration in moist air of at least 90 percent relative humidity and at a temperature of 25 °C to 29 °C for 24 hours ± ½ hour from the time of addition of water to the dry ingredients. After this period the specimens will be marked and removed from the moulds and kept submerged in clear freshwater until taken out prior to the test.


Procedure for Determination of Splitting Tensile Strength of Concrete:-
  1. The specimens will be removed from the water after specified curing time and wiped out excess water from the surface. The dimensions of the specimens will be noted to the nearest 0.2m.
  2. The bearing surfaces of the compression testing machine will be wiped clean. And any loose sand or other materials will be removed from the surfaces of the specimens which are to be in contact with the rollers.
  3. Two bearings strips of nominal (1/8 inch i.e. 3.175 mm) thick plywood free of imperfections approximately (25 mm) wide and of length equal to or slightly longer than that of the specimen should be provided for each specimen.
  4. These two bearing strips (plywood strips) are placed between the specimen and both the upper and lower bearing blocks of the strength testing machine. Also they can be placed between the specimen and the supplemental bars or plates.
  5. Now draw diametric lines at each end of the specimen using a suitable device that will make sure that they are in the same axial plane.
  6. One of the bearing strips (plywood strips) will be centered along the centre of the lower bearing block.
  7. The specimen will be placed on the bearing strip (plywood strip) and aligned carefully so that the lines marked on the ends of the specimen will be vertical and cantered over the plywood strip.
  8. The second plywood strip (bearing strip) will be placed lengthwise on the cylinder, cantered on the lines marked on the ends of the cylinder.
  9. The load will be applied continuously and without shock, at a constant rate within, the range of 689 to 1380 kPa/min splitting tensile stress until failure of the specimen.
The maximum applied load indicated by the testing machine at failure will be recorded. Also the type of failure and appearance of fracture will be noted.


Observation and Calculation:-
1)  Mix proportion =………………………………..
2)  Date of casting=………………………………….
3)  Date of Testing=………………………………….
4)  Age of concrete=………………………………….


Table: Splitting tensile strength of concrete

Trail No 1
Trail No 2
Wt. of specimen (kg)


Diameter  of specimen (mm)


Length of
Specimen (mm)


Failure load P (mm)


Split tensile strength




Formula for split tensile strength of concrete:-

Calculate the splitting tensile strength of the concrete specimens as follows:-


Split Tensile Strength of Concrete-Definition, IS Code, Test Procedure, Formula

Where D is the Diameter (in meter), L is the length (in meter), P is the maximum applied load indicated by testing machine (in kN), T is the splitting tensile strength of concrete and ∏ = 22/7.


Result:-
The average split tensile strength of concrete sample in 7 days is found to be …..…..
The average split tensile strength of concrete sample in 28 days is found to be …..…..
